R4320C Hadron and LeptonX Evaluation Board

img R4320CEVB
Features
  • 4 digital I/O lines
  • RS232 port
  • LED display
Overview

The R4320CEVB evaluation board allows to manage the R4320C Hadron and LeptonX readers directly via USB and UART (via USB converter) interfaces. This board is particularly suited for Hadron and LeptonX readers evaluation and SW development purposes. The board requires an external 5V DC power, see ordering options for a suitable matching product.



Digital I/O

Four I/O lines 3.3 V out @ 3mA, 5 V tolerant

Native USB Port

USB micro female connector

USB 2.0 device

It appears as R4320C Virtual COM Port device; drivers for all Windows OS

UART via USB Port

USB micro female connector

Baudrate: 115200

Databits: 8

Stopbits: 1

Parity: none

Flow control: none

9.6÷115 kbit/s data rate (settable)

It appears as USB serial port; drivers for all Windows OS

LED display

GREEN: power from AC/DC adapter

GREEN: USB connection

YELLOW: UART to USB interface activity

GREEN: GPIO[0..3]

Dimensions

(W)81 x (L)76 x (H)18 mm3
(3.2 x 3.0 x 0.7 inch3)

Electrical Power

DC Voltage 5V +/-5%

Current consumption: 2A max.

Operating Temperature

-20 °C to +70 °C

Name
Revision
R4320C/R4320CB Hadron Technical Information Manual
4

Name
Environment
OS-Version
Revision
Easy Controller Software Windows version
.Net
11/10
1.13.0

Name

R4320C Hadron Data Sheet
R3101C Lepton3x1 Data Sheet
R3104C Lepton3x4 Data Sheet
R7101C Lepton7x1 Data Sheet
R7104C Lepton7x4 Data Sheet

REACH Declaration of Conformity

R4320C Hadron Technical Drawings

CAEN RFID Products Catalog

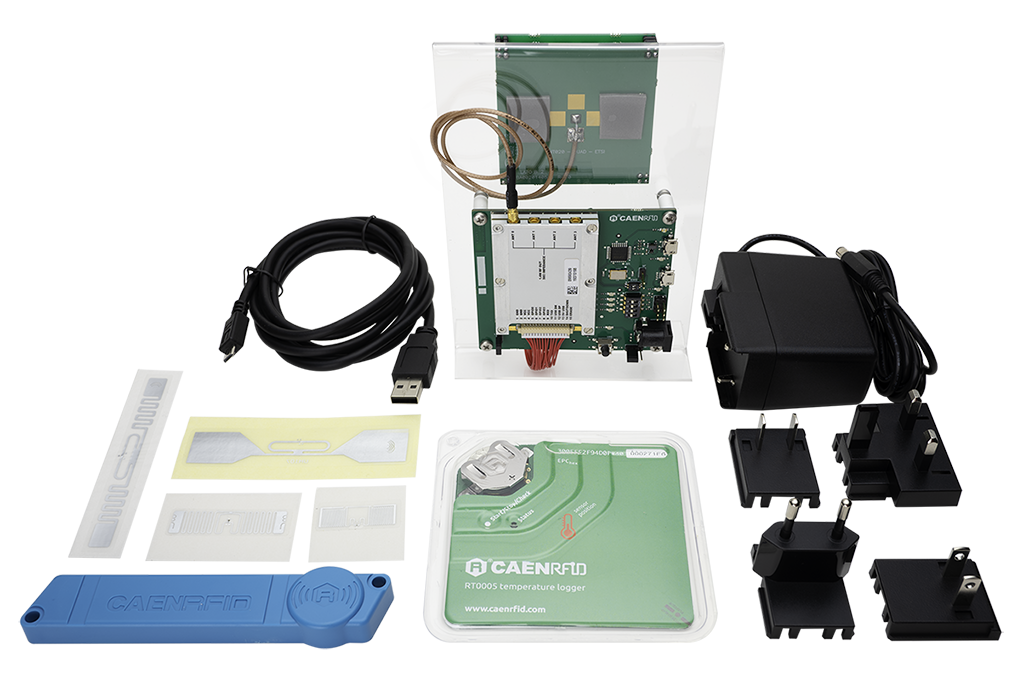

WR4320CXEVBX
R4320C, R3101C, R3104C, R7101C, R7104C, R9101C and R9104C - Evaluation Board
