R1170I

qIDmini

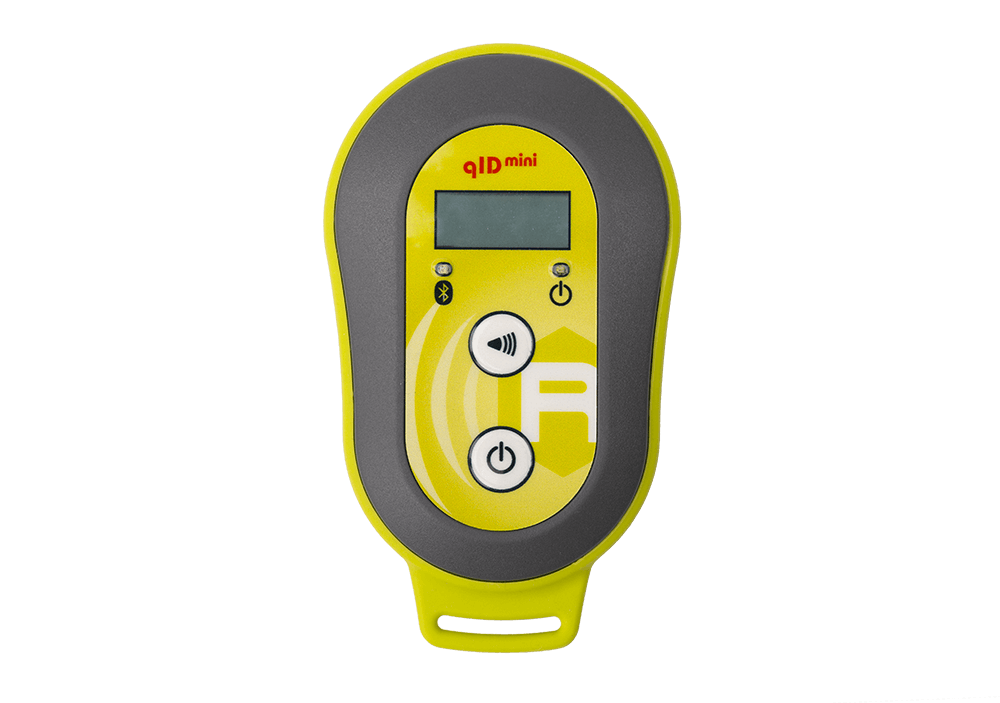

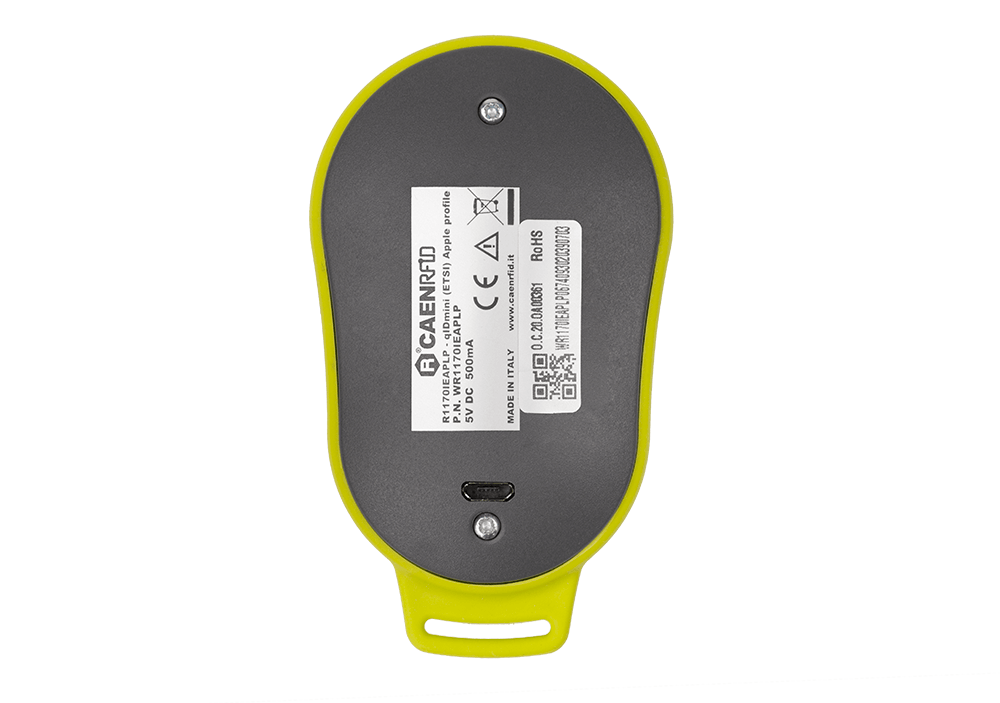

Keyfob Bluetooth RAIN RFID Reader

img R1170I

BENEFITS

  • Display
  • Small, lightweight and ergonomic form factor
  • Fully customizable
  • img USB

    USB

  • img HID

    HID

  • img Bluetooth

    Bluetooth

Features
  • RAIN (UHF EPC C1 G2, ISO 18000-63) Compliant
  • USB and Bluetooth communication
  • SPP and HID Bluetooth profiles
  • Integrated linear polarized antenna
  • Small, lightweight and ergonomic form factor
  • Battery powered
  • LCD display
  • Vibration feedback
  • iPhone/iPad compatibility
  • Also available with Near Field antenna, optimized for Murata MAGICSTRAP® and HITACHI USPT miniaturized tags.
Applications
  • UHF add-on to Bluetooth devices
  • Point of Sales
  • Field Sales Mobility
  • People Access Control
  • Inventory Management
  • Service and Maintenance
DEMO APP DOWNLOAD
Overview

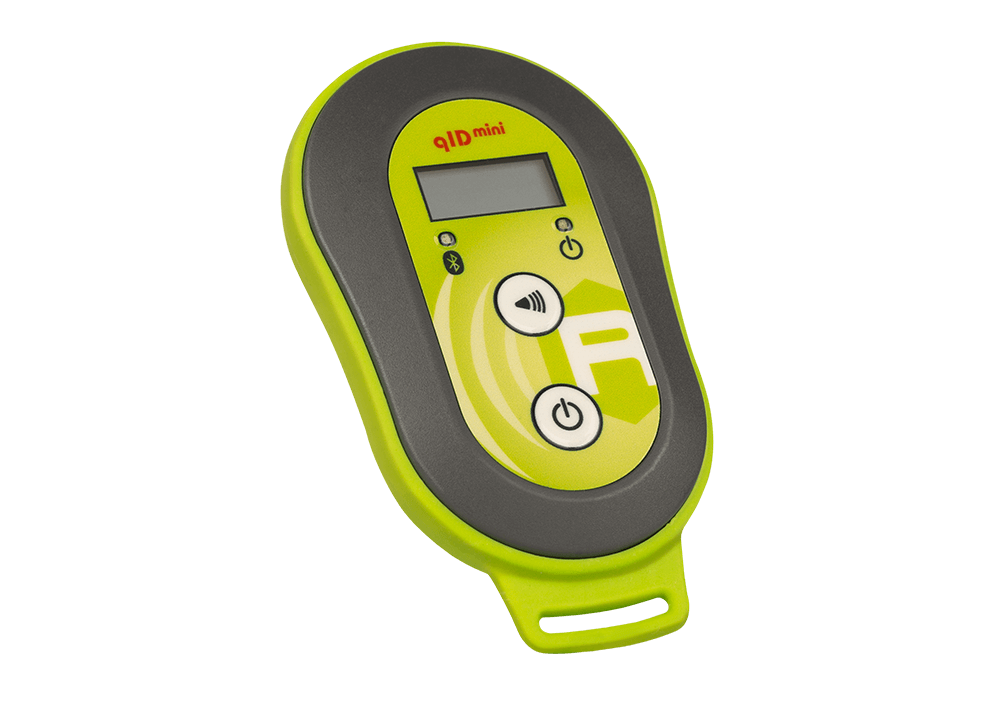

The qIDmini (Model R1170I) is a RAIN RFID handheld reader of the easy2read© product line, compliant with UHF RFID ISO 18000-63/EPC C1G2 standards.
The qIDmini has an integrated antenna suited for short to medium range applications and, thanks to the Bluetooth® communication interface, it is a perfect UHF RFID add-on for any Bluetooth® enabled host such as a PC, a smartphone, a PDA or a tablet. The reader is compatible with Windows 8/10, Windows CE/Mobile, Android, iPhone and iPad.
The HID version supports native keyboard emulation allowing to interact directly with legacy applications, office automation SW or any other generic solution requiring manual input.
The qIDminiNF version is specifically designed to optimize the reading performances with near field miniaturized tags like the Murata Magicstrap and Hitachi USPT. The near field antenna of the qIDminiNF reader permits to read those small tags even when embedded in small parts like watches, jewels or mechanic parts. For this reason, the combination of the miniaturized near field tags and the qIDminiNF reader is a great tool to retrieve the serial numbers in small objects and check the originality of parts.
The reader can also operate in “Batch Mode”, allowing to store EPC codes into the internal memory when the communication links (USB or Bluetooth®) are not available.
When paired to a smartphone or a tablet, the qIDmini is a cost effective alternative to more expensive handheld devices.
Designed for mobile operators in indoor or outdoor areas, the qIDmini is ideal for in-store inventory management, field sales mobility, service and maintenance applications.

Frequency Range

865.600÷867.600 MHz (ETSI EN 302 208 v3.1.1) (Mod. R1170IEHIDP, R1170IEAPLP and R1170IENFHD)
902÷928 MHz (FCC part 15.247) (Mod. R1170IUHIDP, R1170IUAPLP and R1170IUNFHD)
920.625÷924.375 MHz (SRRC RFID national standards) (Mod. R1170IUNFHD with OPT. WPE1170NFACN)
920.4÷923.4 MHz (ARIB T107 RFID national standards) (Mod. R1170IJHIDP and R1170IJAPLP)

RF Power

Programmable in 18 levels from 5dBm e.r.p. (3mW e.r.p.) to 22dBm e.r.p. (150mW e.r.p.) (Mod. R1170IEHIDP and R1170IEAPLP)
Programmable in 13 levels from 5dBm e.r.p. (3mW e.r.p.) to 18dBm e.r.p. (60mW e.r.p.) (Mod. R1170IUHIDP and R1170IUAPLP)
Programmable in 18 levels from 0dBm e.r.p. (1mW e.r.p.) to 17dBm e.r.p. (50mW e.r.p.) (Mod. R1170IENFHD and R1170IUNFHD)
Programmable in 14 levels from 5dBm e.r.p. (3mW e.r.p.) to 19dBm e.r.p. (80mW e.r.p.) (Mod. R1170IJHIDP and R1170IJAPLP)

Antenna Connector

Integrated linear (horizontal)(Mod.R1170IEHIDP, R1170IEAPLP, R1170IUHIDP, R1170IUAPLP, R1170IJHIDP and R1170IJAPLP)
Integrated UHF Near Field Antenna (Mod. R1170IENFHD and R1170IUNFHD)

Number of Channels

4 channels (compliant to ETSI EN 302 208 v3.1.1)(Mod. R1170IEHIDP, R1170IEAPLP and R1170IENFHD)
50 hopping channels (compliant to FCC part 15.247)(Mod. R1170IUHIDP, R1170IUAPLP and R1170IUNFHD)
16 hopping channels (compliant to SRRC RFID national standards) (Mod. R1170IUNFHD with OPT. WPE1170NFACN).
16 hopping channels with LBT (compliant to ARIB T107 RFID national standards) (Mod. R1170IJHIDP and R1170IJAPLP)

Standard Compliance

ISO 18000-63/EPC C1G2

Read Range

up to 90cm (typical) (Mod. R1170IEHIDP, R1170IEAPLP, R1170IUHIDP,R1170IUAPLP, R1170IJHIDP and R1170IJAPLP)

Connectivity

USB Interface:
USB 2.0 Full Speed (12 Mbit/s) device port
Bluetooth Interface: Class 2 with output power 4dBm e.i.r.p.
Virtual COM port parameters:
– Baudrate: up to 230.400kbps
– Databits: 8
– Stopbits: 1
– Parity: none
– Flow control: none
HID profile versions: mod. mod. R1170IEHIDP, R1170IUHIDP, R1170IJHIDP
Apple iOS iAP protocol versions: mod. R1170IEAPLP, R1170IUAPLP, R1170IJAPLP

User Interface

Button #1:ON/OFF
Button #2: Trigger
Led #1: power indication and battery status (green: high; red: low)
Led #2: communication activity (blue: Bluetooth; orange: USB)
Buzzer: bitonal for events signalling
Vibration: for events signalling
Display: LCD Alphanumeric (8 chars x 2 lines)

Internal Buffer Size

48kByte (equivalent to 4096 EPC codes@96bit) (TBC)

Battery Type

Li-Ion 3.7V, 570mAh

Battery Life

Operating: > 12h with 40.000 tag readings
Standby: > 15 days

Battery Charging Time

2h (typical)

IP Rating

IP 32 (Mod. R1170IEHIDP, R1170IEAPLP, R1170IUHIDP, R1170IUAPLP,  R1170IJHIDP and R1170IJAPLP)
IP 30 (Mod. R1170IENFHD and R1170IUNFHD)

Dimensions

(W)99 x (L)54 x (H)20 mm3 max.
(3.9 x 2.1 x 0.8 in3)

Length of USB cable

1.5 m

Operating Temperature

-10 °C to +55 °C

Weight

57 g (Mod. R1170IEHIDP, R1170IEAPLP, R1170IUHIDP, R1170IUAPLP,  R1170IJHIDP and R1170IJAPLP)
58 g (Mod. R1170IENFHD and R1170IUNFHD)

Name
Revision
R1170I qIDmini Firmware
4.9.0
R1170INF qIDminiNF Firmware
3.5.0

Name
Revision
R1170I qIDmini Technical Information Manual
6
Easy Controller Software Technical Information Manual
5
easy2read Protocol Technical Information Manual
19
CAEN RFID SDK Technical Information Manual
1

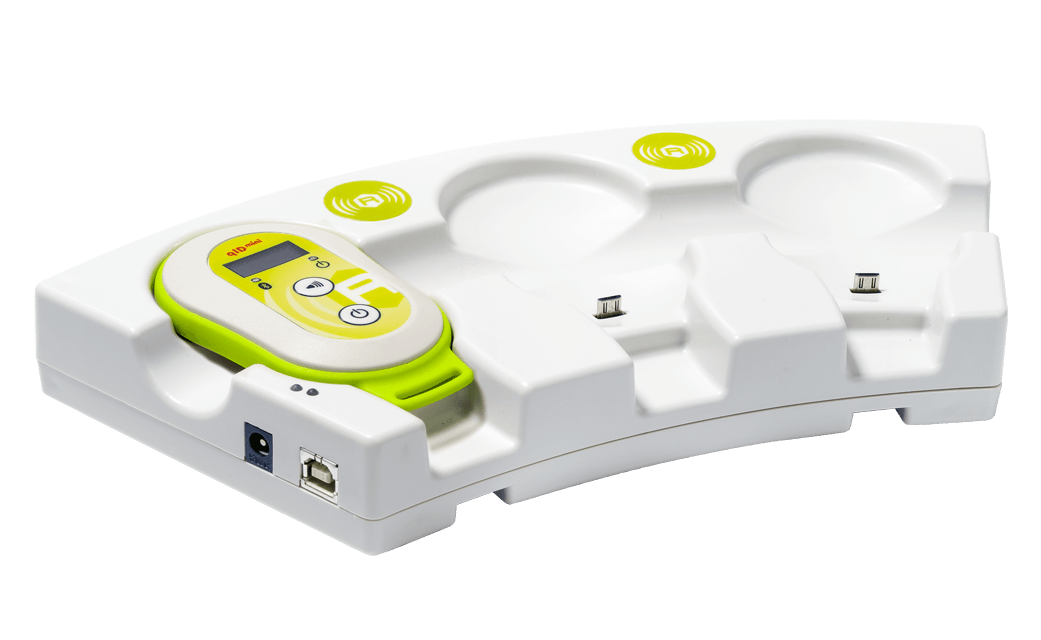

RA0005 qDock Docking Station Technical Information Manual
1

Name
Environment
OS-Version
Revision
CAEN RFID SDK
.Net Standard,Android,C,C++,Java,Swift
10/7/8/Vista/x64bit 7/x64bit Vista/x64bit XP/XP
5.0.0
Easy Controller Software Windows version
.Net
11/10
1.13.0
R1170I qIDmini USB Upgrade Tool
C++
10/7/8/Vista/XP
1.0.0
R1170I qIDmini VCP driver Windows driver
10/7/8/Vista/x64bit 7/x64bit Vista/x64bit XP/XP
1.1.0

Name

R1170I qIDmini Data Sheet

R1170I qIDmini CE Declaration of Conformity
R1170I qIDmini FCC Grant part B
R1170I qIDmini FCC Grant part C
R1170INF qIDminiNF CE Declaration of Conformity
R1170INF qIDminiNF FCC Grant part B
R1170INF qIDminiNF FCC Grant part C
R1170INF qIDminiNF SRRC Type Approval Certificate
REACH Declaration of Conformity

CAEN RFID Products Catalog

WR1170IEAPLP
R1170IEAPLP - qIDmini ­ Keyfob Bluetooth UHF RFID Reader (ETSI) with Apple profile
WR1170IEHIDP
R1170IEHIDP - qIDmini ­ Keyfob Bluetooth UHF RFID Reader (ETSI) with HID profile
WR1170IUAPLP
R1170IUAPLP - qIDmini ­ Keyfob Bluetooth UHF RFID Reader (FCC) with Apple profile
WR1170IUHIDP
R1170IUHIDP - qIDmini ­ Keyfob Bluetooth UHF RFID Reader (FCC) with HID profile
WR1170IENFHP
R1170IENFHP - qIDmini ­ Keyfob Bluetooth UHF NF RFID Reader (ETSI) with HID profile
WR1170IUNFHP
R1170IUNFHP - qIDmini ­ Keyfob Bluetooth UHF NF RFID Reader (FCC) with HID profile
WPE1170NFACN
R1170IUNFHP - China - Customization
