Dual frequency RAIN/NFC humidity and temperature logger TAG

img RT0013


  • Dual frequency RAIN/NFC
  • High temperature and time accuracy
  • Rugged and slim
  • RAIN RFID (UHF EPC Class1 Gen2, ISO 18000-63) interface
  • NFC ISO 14443 Type A interface
  • High temperature and time accuracy
  • Fast samples download
  • Configurable alarms
  • Configurable sampling interval
  • Long monitoring time span
  • Fresh food
  • Seafood
  • Meat and poultry
  • Milk based products
  • Frozen food
  • Pharmaceuticals
  • Special chemical products
  • Clinical trials

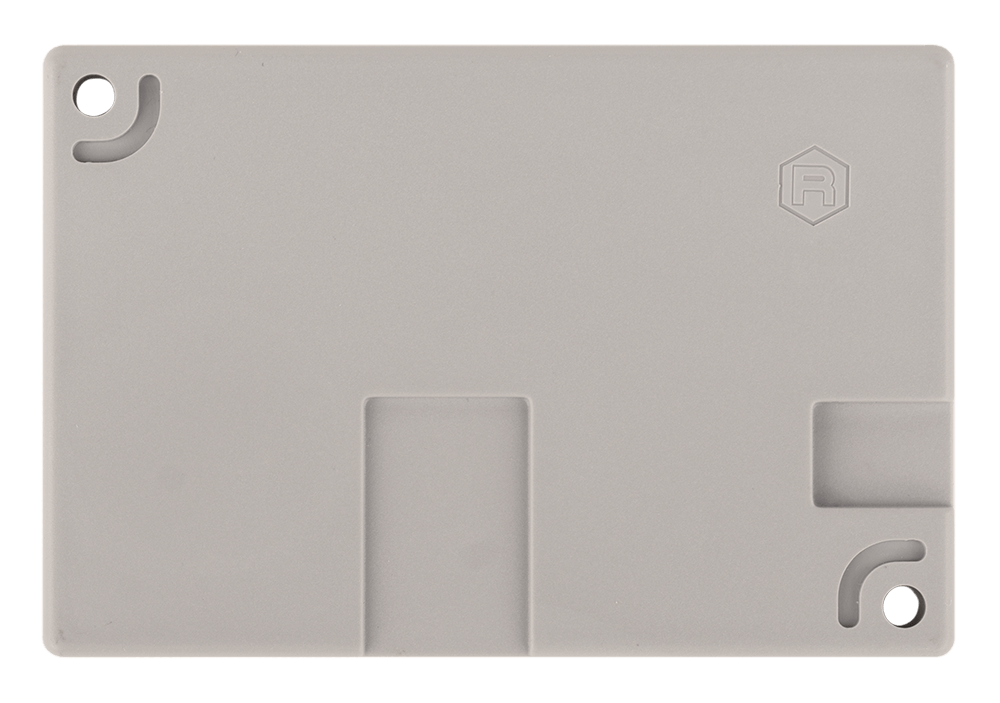

CAEN RFID qLogHUMIDITY (RT0013) is a low cost, semi-passive NFC/RAIN RFID temperature and humidity logger that allows to monitor temperature and humidity sensitive products. The combination of the high resolution sensor, the large memory size and the standard NFC/RAIN RFID interfaces permit to realize effective track and trace solutions for the cold-chain.
The RAIN RFID interface is ideal for reading temperature data or alarms from distance allowing automated check-points on conveyors or through dock doors. The NFC interface permits a very easy interaction with any NFC enabled smartphone allowing the consumer to check the good condition at home.
The qLogHUMIDITY can be configured to store temperature and humidity samples in intervals from 5 second to 18 hours in the internal memory that can contain up to 4,096 samples. The user can define up to 16 temperature ranges with independent threshold alarms for a very accurate control of the temperature excursions.
The rugged enclosure and the compact size permit to use the logger in various applications and the passive radiofrequency behaviour does not prevent air shipments.
The qLogHUMIDITY RFID logger can be used for multiple shipments thanks to the long battery life and the reset function allowing to reduce the total cost of a single monitored shipment and anticipate the ROI of the solution.

Frequency Range

– NFC/HF: 13.56 MHz
– RAIN/UHF: 860÷930 MHz

RFID Protocols

– NFC/RFID ISO 14443 Type A Interface
– RAIN : EPC Class 1 Gen 2 – ISO18000-63

Tag Type


Data Points

Up to 4096 samples

Temperature Range

-30 °C to +70 °C

Temperature Accuracy

±0.5 °C

Humidity Range

0 to 100% relative humidity range

Humidity Accuracy

± 3.5% rH, 20 to +80% rH

Monitoring Time Span

Up to 5 years

Time Accuracy

<0.02% error (typical)

Read Range

– NFC/HF: up to 5 cm.
– RAIN/UHF: up to 5 mt. In free air @ 2W ERP

Available Memory

Up to 160 bits in EPC memory bank and up to 448 bits available for user

Monitoring Delay Option

Up to 18 hours


– Multiple configurable sampling interval
– Humidity and temperature histogram function
– Configuration and start accessible both from NFC and RAIN interface
– Samples download accessible both from NFC and RAIN interface
– User accessible memory shared between NFC and RAIN


– Multiple configurable high and low temperature/humidity thresholds
– Estimated Time of Arrival
– Battery Level

Battery Life

1 year typical (depending on usage and operating temperature)

Battery Type

Li/MnO2 Model Renata CR2430SN

IP rating


Enclosure Material



– (W)92 x (L)63 x (H)6.5 mm3 max.
– 3.62 x 2.48 x 0.25 inches3


35 g.
