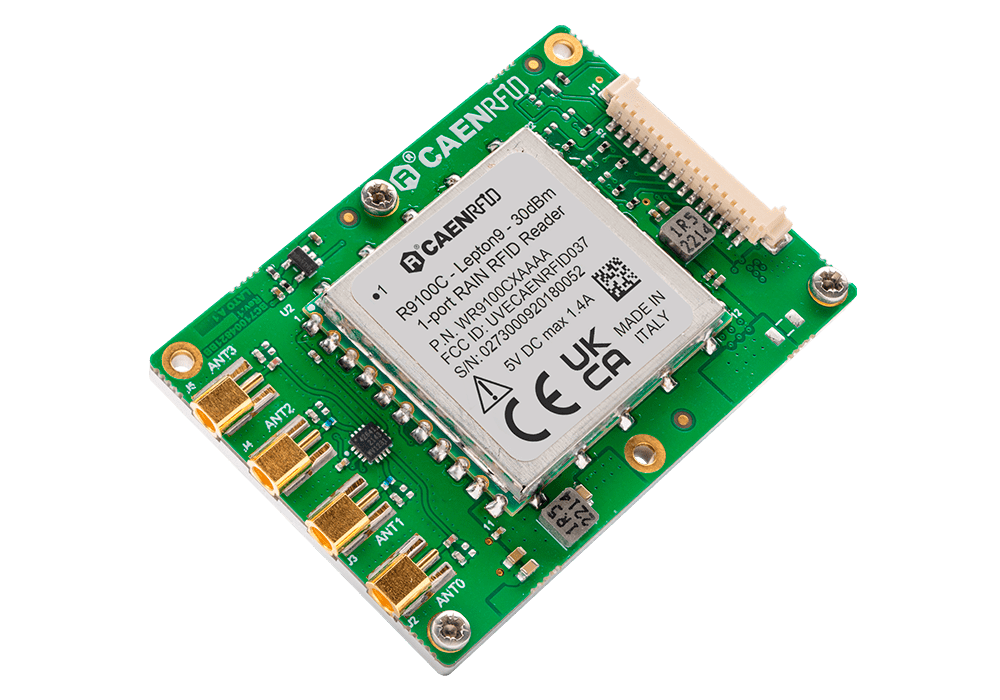

The Lepton9x4 (Model R9104C), an embedded reader of the easy2read© product line, is an ultra compact reader for low power, high performance RAIN RFID applications.
With programmable output power from 10 dBm to 30 dBm, the reader can detect tags at more than 5 m of distance (depending on antenna and tag dimensions).
Due to its low power consumption, the module is specifically designed to be easily integrated in battery powered devices.
The radio frequency core of the module is based on the Impinj E910 IC that permits to achieve fast reading speed and to be used in dense reader and dense tag environments for top-class rated performances.
The compactness of the device allow to embed the Lepton9x4 inside industrial handhelds, smartphone accessories and other compact form factor devices.
The Lepton9x4 complies with and can operate in both European and US regulatory environments and, thanks to its multiregional capabilities, it’s ideal for integration in devices requiring compliance to different geographical regions.
The Lepton9x4 is designed on the basis of the Lepton9 with the aim to facilitate the integration for those who prefer to use connectors instead of automatic manufacturing required by the SMD form factor. The Lepton9x4 has also a wider power supply voltage range to permit to connect it directly to battery packs.
865.600÷867.600 MHz (ETSI EN 302 208 v. 3.3.1)
902÷928 MHz (FCC part 15.247)
Configurable from 10 dBm to 30 dBm (from 10 mW to 1 W) conducted power
-90 dBm – 10%PER, assuming 20 dB antenna RL @ 30 dBm output
< 2:1 for optimal performance
4 MMCX jack
± 10 ppm over the entire temperature range
4 channels (compliant to ETSI EN 302 208 v. 3.3.1)
50 hopping channels (compliant to FCC part 15.247)
EPC Class 1 Gen 2 – ISO18000-63
UART Serial Port:
3.3 V I/O voltage level
4 I/O lines 3.3 V level
Iout = 8 mA max.
3.2 ÷ 5.25 V DC
8W max @ RF out = 30 dBm
80mW in idle mode – Ready to receive commands
(L)60 x (W)42 x (H)8.1 mm3
2.36 x 1.65 x 0.32 inches3
-20 °C to +70 °C
